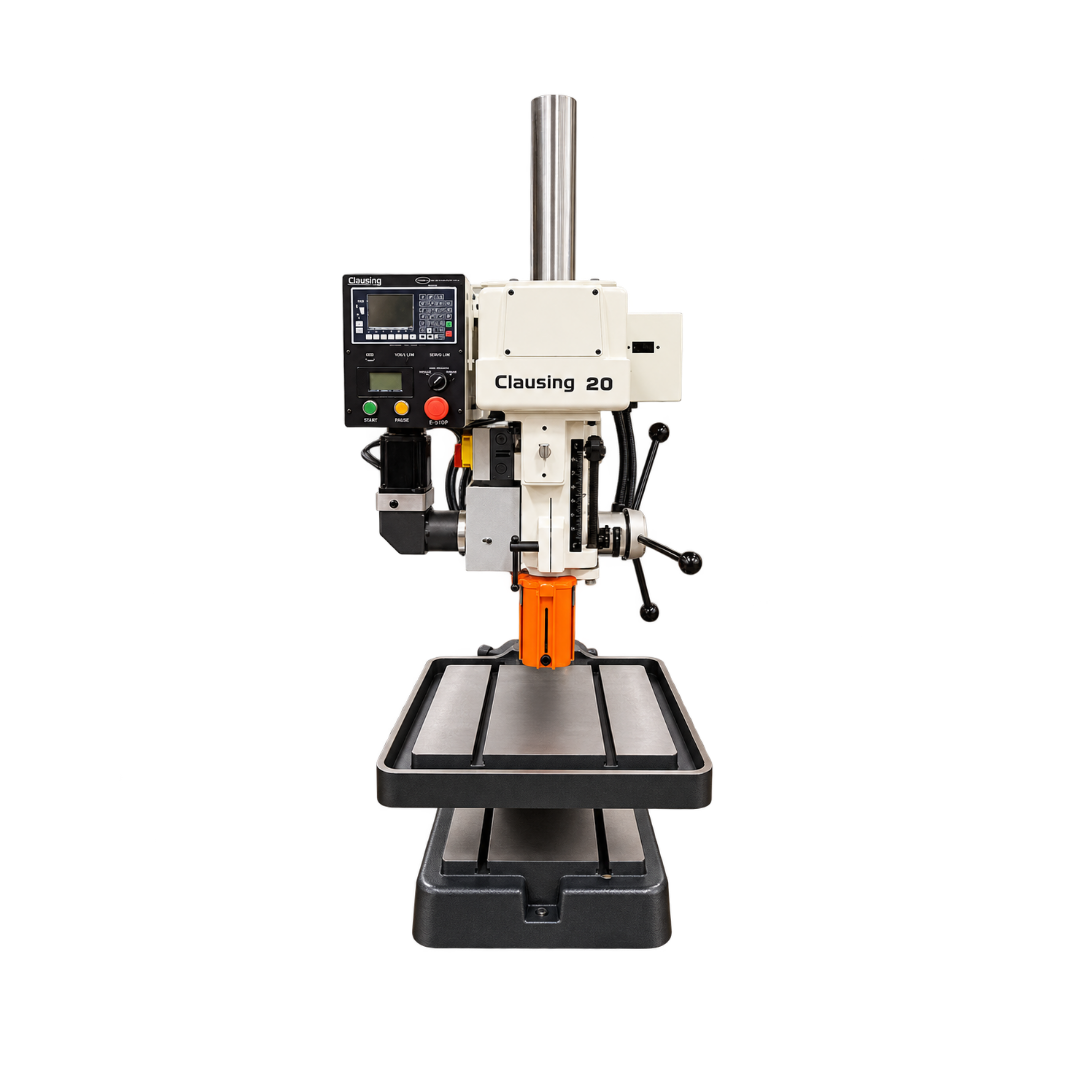

Clausing 20″ CNC Drill Press
Model Number#:
Price: Request a Quote
Items Via Ship: Truck
FOB: Kalamazoo, MI
Explore the American-made Clausing 20″ CNC Drill Press, featuring heavy-duty construction, CNC control, and 1-1/4″ drilling capacity.
Need Help? Call Us Now!
Features and Benefits:
The Clausing 20″ CNC Drill Press combines American-made quality with heavy-duty construction and CNC technology for industrial drilling applications. Designed for precision and efficiency, the CNC Series offers programmable drilling capabilities for machine shops, manufacturing facilities, and production environments.
Features and Benefits:
- CNC Control: Enables programmable drilling operations for improved consistency and repeatability.
- Heavy-Duty Construction: Provides a sturdy foundation for industrial drilling applications.
- 1-1/4″ Drilling Capacity: Accommodates a wide range of drilling requirements.
- Programmable Operation: Helps streamline repetitive drilling tasks and reduce manual intervention.
- Industrial Versatility: Suitable for machine shops, manufacturing facilities, and production applications.
- Electrical Configurations: Available in single-phase and three-phase options to accommodate different shop requirements.
- Multiple Machine Configurations: Available as a complete floor drill, head and column assembly, or head-only assembly.
Specifications
Technical Specifications
| Specification | CNC Floor Drill | CNC Head & Column |
|---|---|---|
| Drilling Capacity (Manual Hand Feed) | 1.25″ Diameter | 1.25″ Diameter |
| Power Feed Capacity (Cast Iron) | 1″ Diameter | 1″ Diameter |
| Power Feed Capacity (Mild Steel) | 3/4″ Diameter | 3/4″ Diameter |
| Drill to Center of Circle | 20″ | 20″ |
| Spindle Nose | 3MT | 3MT |
| Spindle Travel | 6.5″ | 6.5″ |
| Column | 4″ Diameter Ground Steel, 1/2″ Thick Wall | 4″ Diameter Ground Steel, 1/2″ Thick Wall |
| Quill Diameter | 2.5″ | 2.5″ |
| Quill Return Spring Capacity | — | — |
| Adjustable Table Working Surface | 22″ x 19.5″ | — |
| Adjustable Table T-Slots | Two 15.5″ Long, 1/2″ T-Bolt, 9″ Centers | — |
| Table Travel | 20″ | — |
| Spindle to Adjustable Table Max. | 33.125″ | — |
| Base Working Surface | 15.5″ x 13″ | — |
| Base T-Slots | Two 13″ Long, 1/2″ T-Bolt, 9″ Centers | — |
| Spindle to Base Max. | 43.375″ | — |
| Column Bracket to Spindle Center | — | 9.25″ |
| Column to Spindle Center | 10″ | 10″ |
| Spindle to Stationary Table Max. | — | 25.43″ |
| Column Length (Standard) | 66″ | 43″ |
| Motor NEMA Frame Size | 182 and 184 | 182 and 184 |
| Shipping Weight (Approx.) | 675 lbs. | 435 lbs. |
| Net Weight (Approx.) | 645 lbs. | 405 lbs. |
| Shipping Dimensions (L x W x H) | 40″ x 40″ x 72″ | 38″ x 38″ x 55″ |
| Machine Dimensions (L x W x H) | 36″ x 36″ x 69″ | 20″ x 32.5″ x 51.63″ |
All specifications are subject to change without notice or obligation.
Available Models and Configurations
The Clausing 20″ CNC Drill Press is available in multiple electrical and machine configurations.
| Model Number | Voltage | Electrical Phase | Configuration |
|---|---|---|---|
| 2272CNC1-110 | 115V | 1 Phase | Complete Floor Drill |
| 2272CNC1-220 | 220V | 1 Phase | Complete Floor Drill |
| 2274CNC3-230 | 230V | 3 Phase | Complete Floor Drill |
| 2274CNC3-460 | 460V | 3 Phase | Complete Floor Drill |
| 2272CNC1-110-300 | 115V | 1 Phase | Head and Column |
| 2272CNC1-220-300 | 220V | 1 Phase | Head and Column |
| 2274CNC3-230-300 | 230V | 3 Phase | Head and Column |
| 2274CNC3-460-300 | 460V | 3 Phase | Head and Column |
| 2272CNC1-110-HD | 115V | 1 Phase | Head Only |
| 2272CNC1-220-HD | 220V | 1 Phase | Head Only |
| 2274CNC3-230-HD | 230V | 3 Phase | Head Only |
| 2274CNC3-460-HD | 460V | 3 Phase | Head Only |
