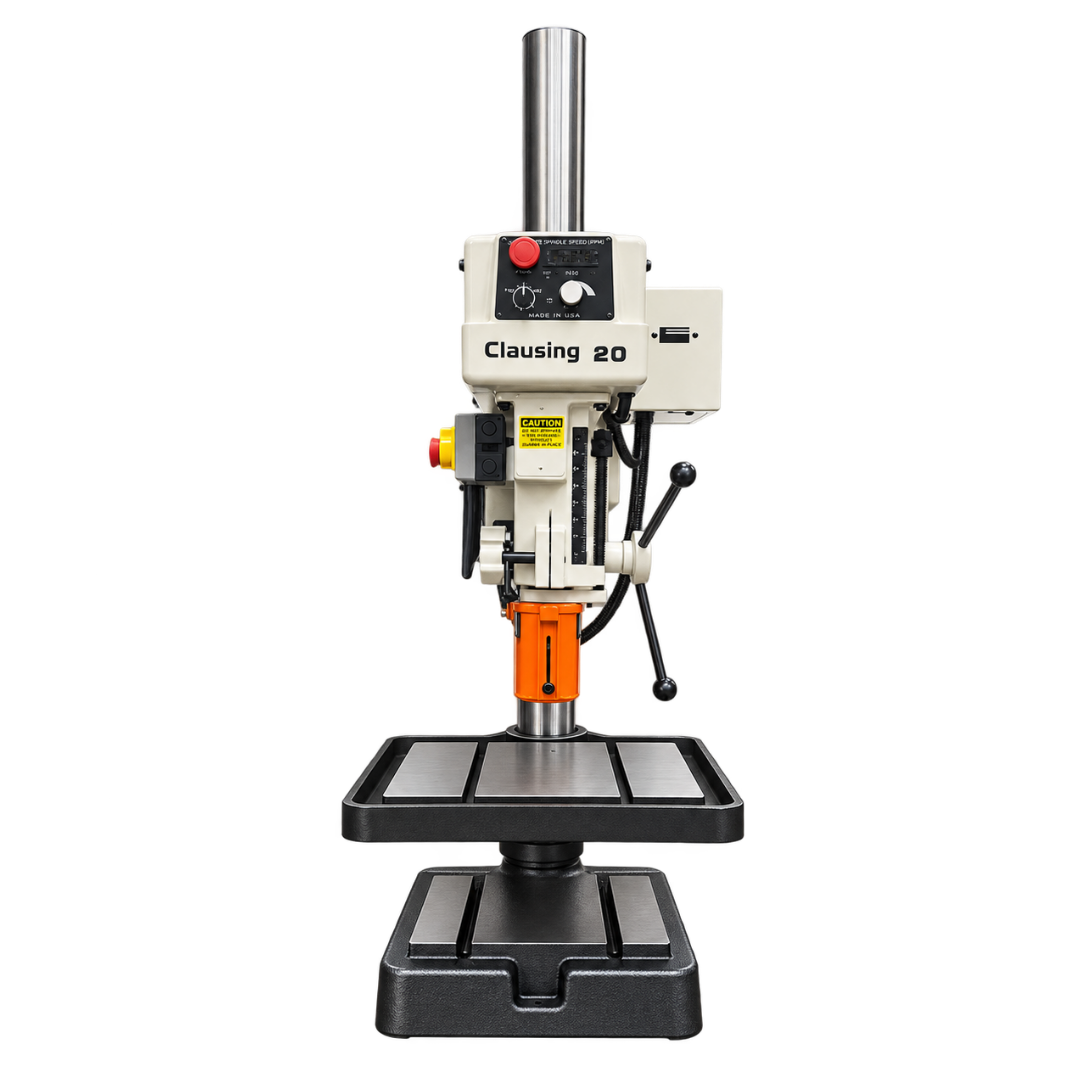

Clausing 20″ EVS Drill Press
Model Number#:
Price: Request a Quote
Items Via Ship: Truck
FOB: Kalamazoo, MI
Explore the American-made Clausing 20″ EVS Drill Press, featuring heavy-duty construction and 1-1/4″ drilling capacity.
Need Help? Call Us Now!
Features and Benefits:
The Clausing 20″ EVS Drill Press combines American-made quality with heavy-duty construction and electronic variable speed control for demanding industrial drilling applications. With a 1-1/4″ drilling capacity, 3MT spindle taper, and 6.5″ spindle travel, the EVS Series delivers versatility for machine shops, manufacturing facilities, and maintenance operations.
Features and Benefits:
- Electronic Variable Speed Control: Allows convenient spindle speed adjustments for different drilling applications.
- Heavy-Duty Construction: Provides a sturdy foundation for industrial drilling operations.
- 1-1/4″ Drilling Capacity: Accommodates a wide range of drilling applications.
- 3MT Spindle Taper: Provides compatibility with Morse Taper tooling.
- 6.5″ Spindle Travel: Accommodates deeper drilling operations.
- Adjustable Worktable: 22″ x 19.5″ working surface with 20″ vertical travel on complete floor models.
- Electrical Configurations: Available in single-phase and three-phase options to accommodate different shop requirements.
- Multiple Machine Configurations: Available as a complete floor drill, head and column assembly, or head-only assembly.
Specifications
Technical Specifications
| Specification | EVS Floor Drill | EVS Head & Column |
|---|---|---|
| Drilling Capacity | 1.25″ | 1.25″ |
| Drill to Center of Circle | 20″ | 20″ |
| Spindle Nose | 3MT | 3MT |
| Spindle Travel | 6.5″ | 6.5″ |
| Column | 4″ Diameter, Ground Steel, 1/2″ Thick Wall | 4″ Diameter, Ground Steel, 1/2″ Thick Wall |
| Quill Diameter | 2.5″ | 2.5″ |
| Quill Return Spring Capacity | 40 lbs. | 40 lbs. |
| Adjustable Table Working Surface | 22″ x 19.5″ | — |
| Adjustable Table T-Slots | Two 15.5″ Long, 9″ Centers | — |
| Table Travel | 20″ | — |
| Spindle to Adjustable Table Max. | 33.125″ | — |
| Base Working Surface | 15.5″ x 13″ | — |
| Base T-Slots | Two 13″ Long, 9″ Centers | — |
| Spindle to Base Max. | 43.375″ | — |
| Column Bracket to Spindle Center | — | 9.25″ |
| Column to Spindle Center | 10″ | 10″ |
| Spindle to Stationary Table Max. | — | 25.43″ |
| Column Length | 66″ | 43″ |
| Motor NEMA Frame Size | 182 and 184 | 182 and 184 |
| Shipping Weight (Approx.) | 650 lbs. | 410 lbs. |
| Net Weight (Approx.) | 620 lbs. | 380 lbs. |
| Shipping Dimensions (L x W x H) | 32″ x 40″ x 72″ | 30″ x 38″ x 55″ |
| Machine Dimensions (L x W x H) | 28″ x 36″ x 69″ | 20″ x 32.5″ x 51.63″ |
All specifications are subject to change without notice or obligation.
Available Models and Configurations
The Clausing 20″ EVS Drill Press is available in multiple electrical and machine configurations.
| Model Number | Voltage | Phase | Configuration |
|---|---|---|---|
| 2272EVS1-110 | 115V | 1 Phase | Complete Floor Drill |
| 2272EVS1-220 | 220V | 1 Phase | Complete Floor Drill |
| 2274EVS3-230 | 230V | 3 Phase | Complete Floor Drill |
| 2274EVS3-460 | 460V | 3 Phase | Complete Floor Drill |
| 2272EVS1-110-300 | 115V | 1 Phase | Head and Column |
| 2272EVS1-220-300 | 220V | 1 Phase | Head and Column |
| 2274EVS3-230-300 | 230V | 3 Phase | Head and Column |
| 2274EVS3-460-300 | 460V | 3 Phase | Head and Column |
| 2272EVS1-110-HD | 115V | 1 Phase | Head Only |
| 2272EVS1-220-HD | 220V | 1 Phase | Head Only |
| 2274EVS3-230-HD | 230V | 3 Phase | Head Only |
| 2274EVS3-460-HD | 460V | 3 Phase | Head Only |
